Description
Technical Specifications

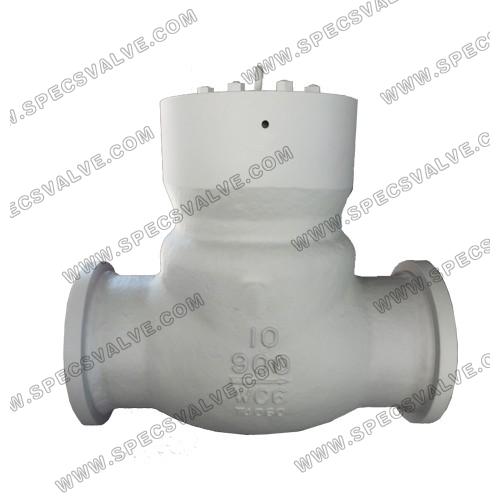

Pressure Seal Tilting Disc Check Valve, Tilting Disc operation is automatic and requires no assistance. When the flow exerts sufficient pressure against the disc to overcome the disc's weight, the disc, which is set on a hinge, lifts allowing the flow to continue through the piping system. As the pressure decreases, the disc lowers until its own weight forces it to seat. This prevents the possibility of a reversal in the flow.
Design Features
A range of ASME Class 150, 300 and 600 bolted bonnet cast steel valves, with metal-to-metal seating in flanged or butt weld ends.
Pressure seal
Swing type disc
Damper & Counter weight options
Size: 2" ~ 24"
Pressure Rating: ASME CLASS 600~2500
Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
End: BW, RF, RTJ
Design & Manufacture Standard: BS 1868, ASME16.34, API 6D
Face to Face: ASME B16.10, API 6D
End Connection: ASME B16.5, ASME B16.25
Test Standard: API598, API 6D
