Description
Technical Specifications
SPECS Pressure Relief Regulators or we can call it excess pressure regulators provide a desired and constant upstream pressure.The upstream pressure which the regulators matain we call it setting pressure.For the pressure relief regulators the valve opens when the upstream pressure rises. Pressure Relief Regulators are necessary for the pipeline system to get free of overpressure damages.
Applicable Standard
Design & Manufacture Standard: Manufacturer's Standard
Face to Face: DIN 3202-1999 F1
End Connection: ASME B16.5, EN1092-1, GOST33259
Test Standard: Manufacturer's Standard
Products Range
Size: 1/2"~16"
Pressure Rating: ASME CLASS 150~300
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF,FM), Butt Weld, Socket Weld.
Temperature Range:-5℃~150℃
Seat Leakage: ANSI IV or ANSI VI(bubble-tight)
Bonnet Type: Standard, Long-Extension
Setting Range: 0.005~1.6Mpa(G)

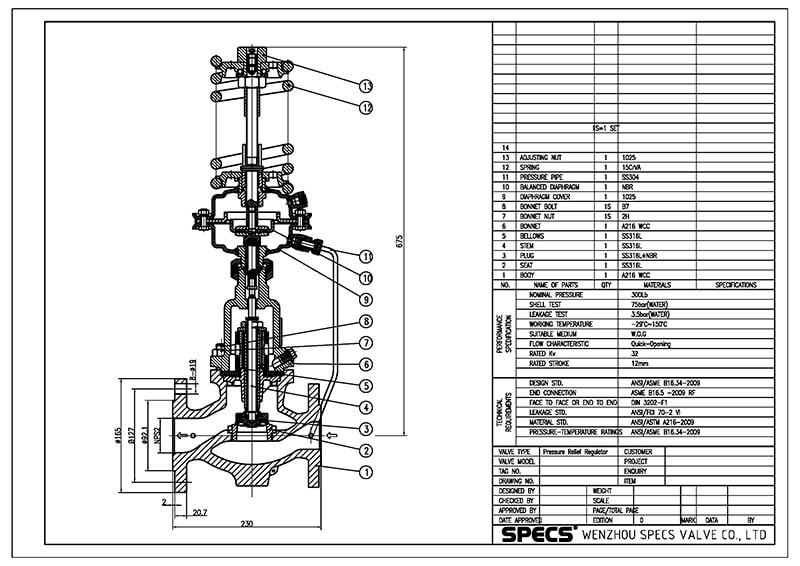

The GA Of Pressure Relief Regulator

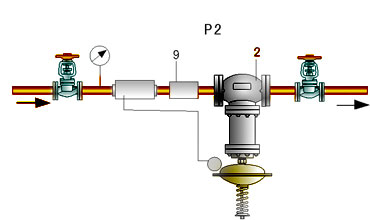

The application of pressure relief regulator
