SPECS Pressure Reducing Regulators provide a desired and constant downstream pressure,even though the upstream pressure changes.The pressure which the regulators maintain we call it setting point pressure.For the pressure reducing regulators the valve closes when the downstream pressure rises and opens when the downstream drops.
Applicable Standard
Design & Manufacture Standard: Manufacturer's Standard
Face to Face: DIN 3202-1999 F1
End Connection: ASME B16.5, EN1092-1, GOST33259
Test Standard: Manufacturer's Standard
Products Range
Size: 1/2"~16"
Pressure Rating: ASME CLASS 150~300
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF,FM), Butt Weld, Socket Weld.
Temperature Range:-5℃~230℃
Seat Leakage: ANSI IV or ANSI VI(bubble-tight)
Bonnet Type: Standard, Long-Extension
Setting
Range: 0.005~1.6Mpa(G)
Design Features
1. The valve body is equipped with a pressure balance mechanism, which is composed of the following parts:
Size 1/2"~5" is composed of metal bellows and balance spring
Size 6"~16" is composed of balance diaphragm and balance spring
2. The valve body part and the actuator are connected together by the lock nut, which is convenient to disassemble and assemble
3. Four types of actuators can meet the requirements of different working conditions
Benefits
1. High-precision adjustment through pressure balance mechanism
2. Adopting modular design, different control modes can be realized by replacing the actuator

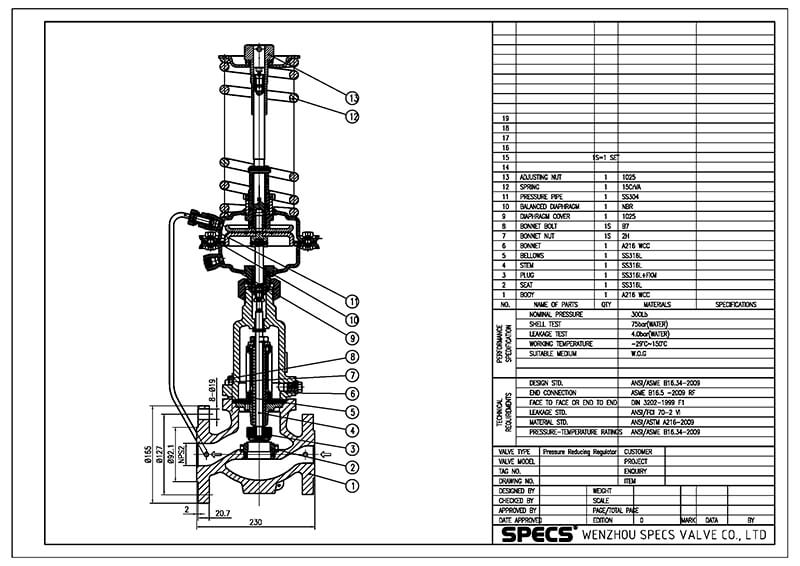

The GA Of Pressure Reducing Regulator

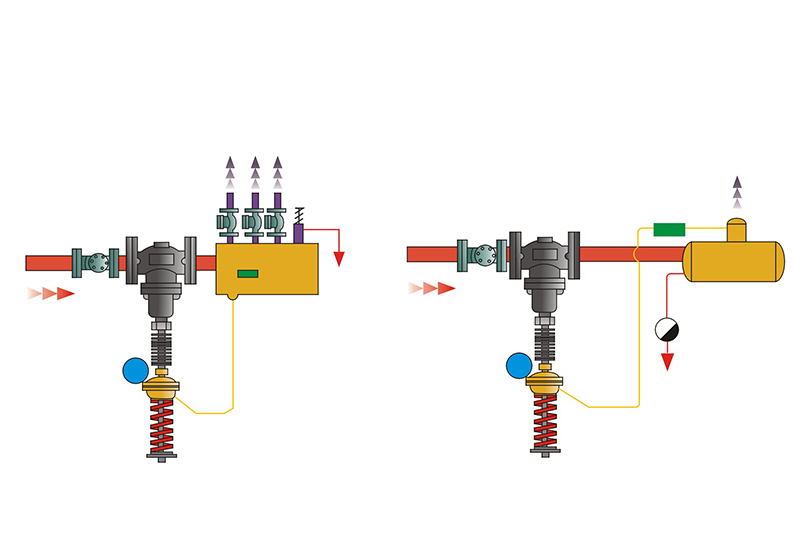

The application of pressure regulator
