SPECS Differential pressure regulators are widely used for industrial applications. Such as city heating systems, large building heating networks and etc.The pressure differential regulators can matain a constant differential pressure between inlet and outlet pressure point.
The valve opens when the differential pressure rises.The typical application is the indirect connection of district heating systems(Installation of return flow pipe, opening type is installed heating return pipe).
Applicable Standard
Design & Manufacture Standard: Manufacturer's Standard
Face to Face: DIN 3202-1999 F1
End Connection: ASME B16.5, EN1092-1, GOST33259
Test Standard: Manufacturer's Standard
Products Range
Size: 1/2"~16"
Pressure Rating: ASME CLASS 150~300
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF,FM), Butt Weld, Socket Weld.
Temperature Range:-5℃~150℃
Seat Leakage: ANSI IV or ANSI VI(bubble-tight)
Bonnet Type: Standard, Long-Extension
Setting Range:0.005~0.6Mpa(G)

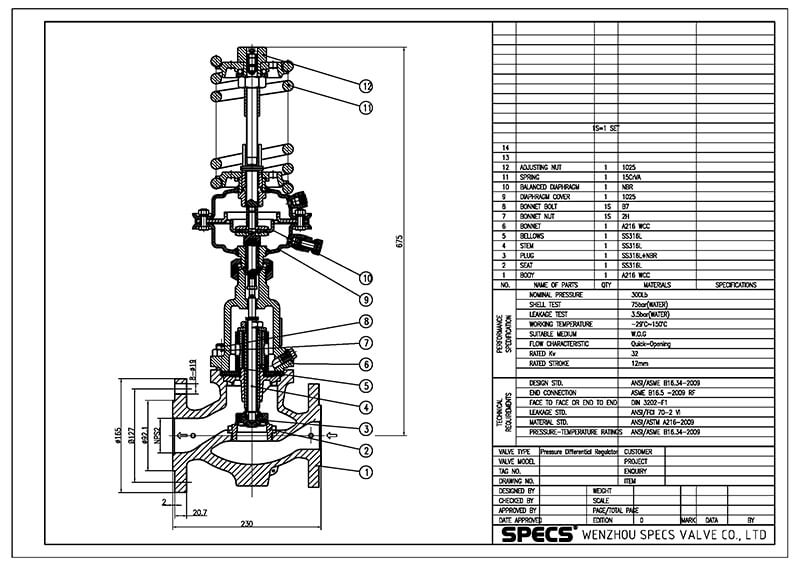

The GA Of Pressure Differential Regulator
