Pneumatic Ceramic Ball Valve Export

Update time: 22-01-07 Views: 1062

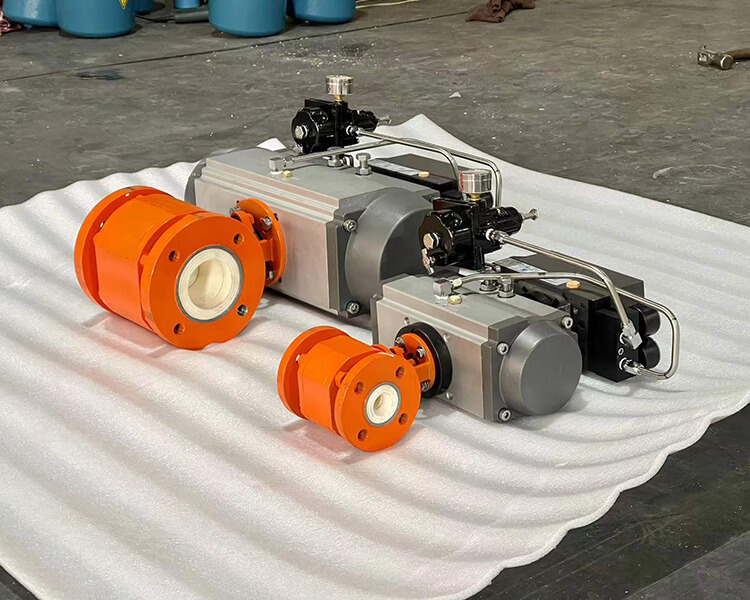

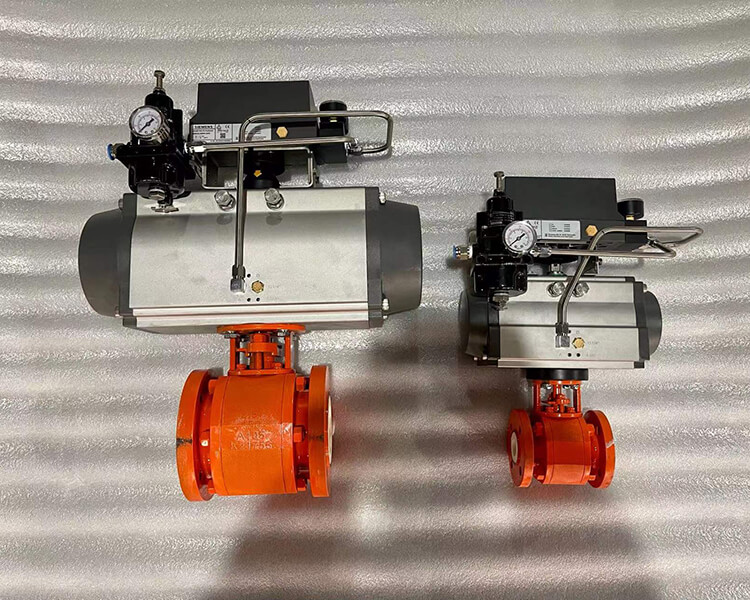

Its pleasure that SPECS VALVE just finished PO of 2 sets pneumatic ceramic Ball Valve and shipment to customer in South America.

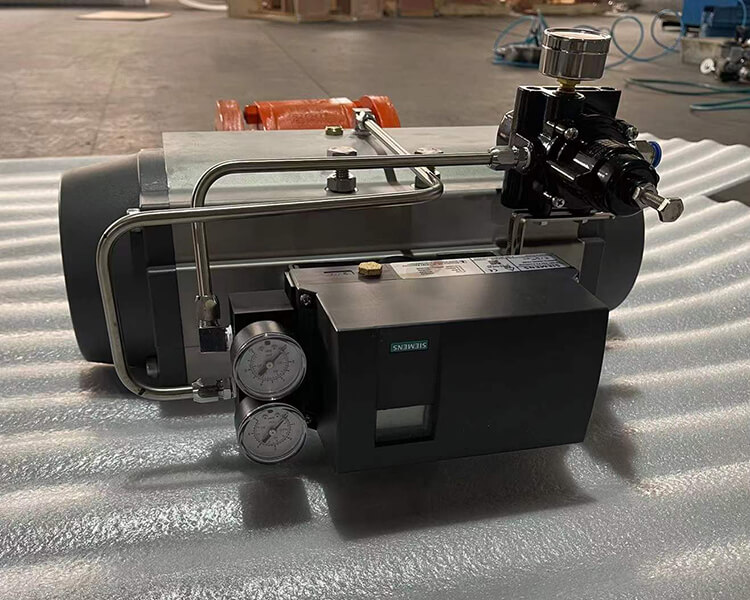

This valve is applicable as an on-off or pipelines with high-hardness grains or with both soft grains and corrosive media. Its nominal pressure is Class 150, and applicable temperature <200°C. and air supply pressure 0.6-0.8MPa.

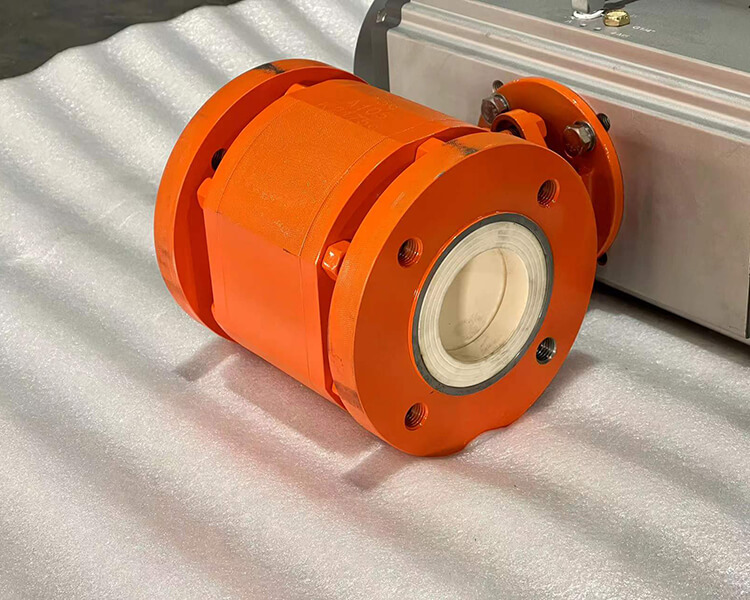

All medium-contacting parts are made of structural ceramic, featuring extremely high chemical stability and hardness (Rockwell Hardness HRC90), only next to diamond. Therefore this valve has extremely strong resistance to abrasion, corrosion and erosion, good heat insulation and small thermal expansion. The ball body is made with advanced grinding equipment and process, with high-precision ball roundness and good surface quality, and after facing-up with the valve seat, a good sealablity can be obtained by means of self-lubrication of Zr02 ceramic.

Thanks to the ceramic's strong resistance to abrasion, this valve is durable and extremely reliable, with a long service life being 2-4 times of that of Ti alloy and Monel valves.

If you're interested in our valves,welcome visit www.specsvalve.com or contact to us info@specsvalve.com directly.

The Specification of this order as bellow for reference:

Type: Ceramic Ball Valve

Size: 1 Inch

Pressure: ANSI 150#

Body material: A105

Trim material: AL₂O₃+ZrO₂

Stem: SS316L

Packing: PTFE

Qty:1

Type: Ceramic Ball Valve

Size: 2.5 Inch
