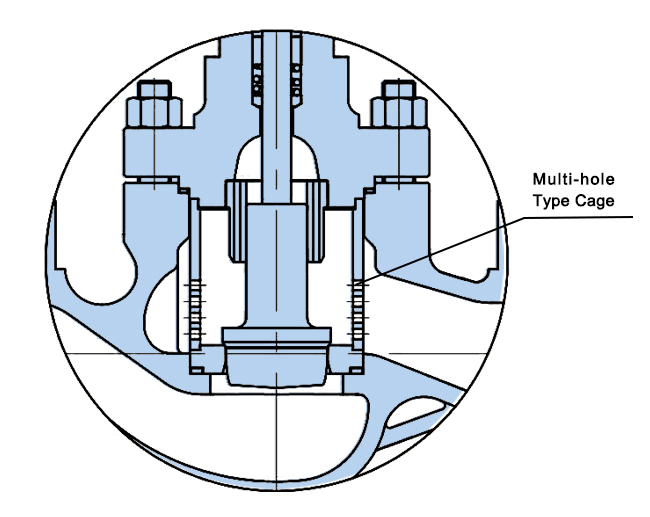

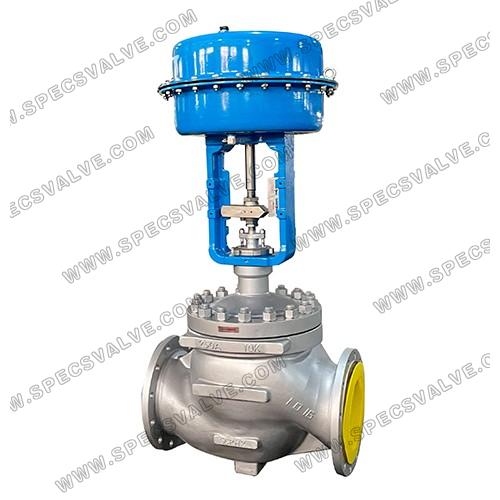

SPECS Multi Hole Single Seated Control Valve is a top guided, plunger-type Control Valve. By incorporating a multi-hole type cage, the anti-cavitation and noise reduction performance is significantly improved. It is suitable for fluid control under more severe working conditions.
Note:This series can not been used in the medium contains large solid particles.
Applicable Standard
Design & Manufacture Standard: IEC 60534-2006
Face to Face: ISA-75.03-1992
End Connection: ASME B16.5, EN1092-1, GOST33259, ASME B16.25
Test Standard: IEC60534-4
Products Range
Size: 1/2" ~ 8"
Pressure Rating: ASME CLASS 150~2500
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF, RTJ), Butt Weld, Socket Weld.
Temperature Range: -196℃~550℃
Seat Leakage: ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type: Standard,Fin-Extension,Long-Extension,Bellows,Steam Jacket
Design Features
1. Top guided and low flow resistance design
2. Especially suitable for all cavitation liquid services as well as steam and gas services

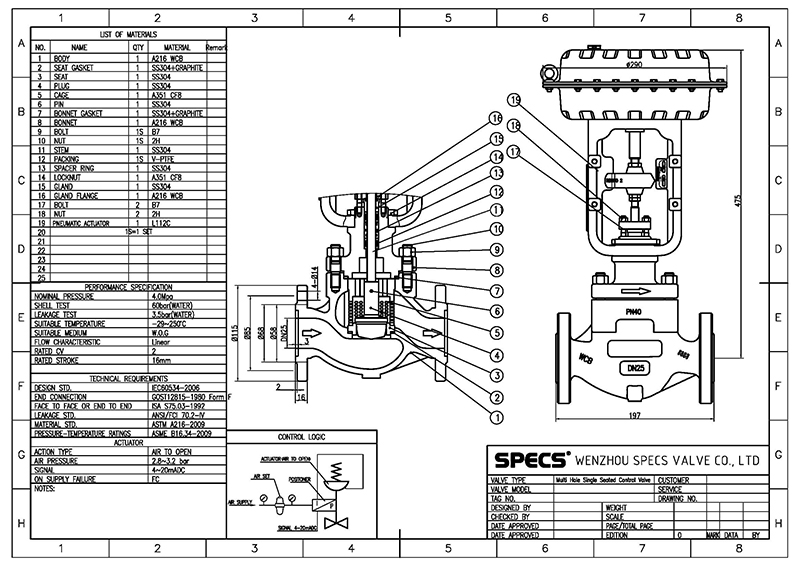

The GA Of Multi Hole Single Seated Control Valve
Body part selection map
