SPECS Motorized Control Valve is a electric intelligent Control Valve. Equipped with an intelligent electric actuator, it accepts a 4-20mA or 1-5V DC standard signal, converts the current signal into a corresponding linear displacement, and automatically controls the opening of the control valve to achieve the pressure on the fluid in the pipeline continuous adjustment of process parameters such as flow rate, temperature and liquid level.
Many types of electric actuators are available, and customers can also specify the brand.
Applicable Standard
Design & Manufacture Standard: IEC 60534-2006
Face to Face: ISA-75.03-1992
End Connection: ASME B16.5, EN1092-1, GOST33259, ASME B16.25
Test Standard: IEC60534-4
Products Range
Size: 1/2"~24"
Pressure Rating: ASME CLASS 150~2500
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF, RTJ), Butt Weld, Socket Weld.
Temperature Range: -196℃~550℃
Seat Leakage: ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type：Standard, Long-Extension,Bellows,Steam Jacket

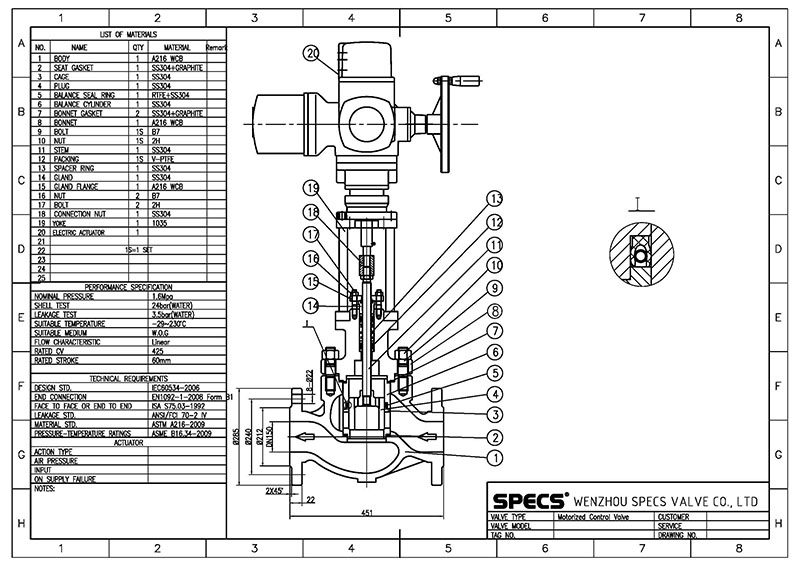

GA Of Motorized Control Valve
