Description
Technical Specifications
SPECS micro Pressure Relief Regulator has been specifically designed for tank blanketing applications.The valve opens to prevent a rise of internal pressure in excess of a specified value,this series can protect the tank from damage of overpressure.
Applicable Standard
Design & Manufacture Standard: Manufacturer's Standard
Face to Face: DIN 3202-1999 F1
End Connection: ASME B16.5, EN1092-1, GOST33259
Test Standard: Manufacturer's Standard
Products Range
Size: 1/2"~4"
Pressure Rating: ASME CLASS 150~300
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF,FM), Butt Weld, Thread
Temperature Range: -5℃~150℃
Seat Leakage: ANSI IV or ANSI VI(bubble-tight)
Bonnet Type: Standard
Setting Range: 0.5~6.0kPa(G)

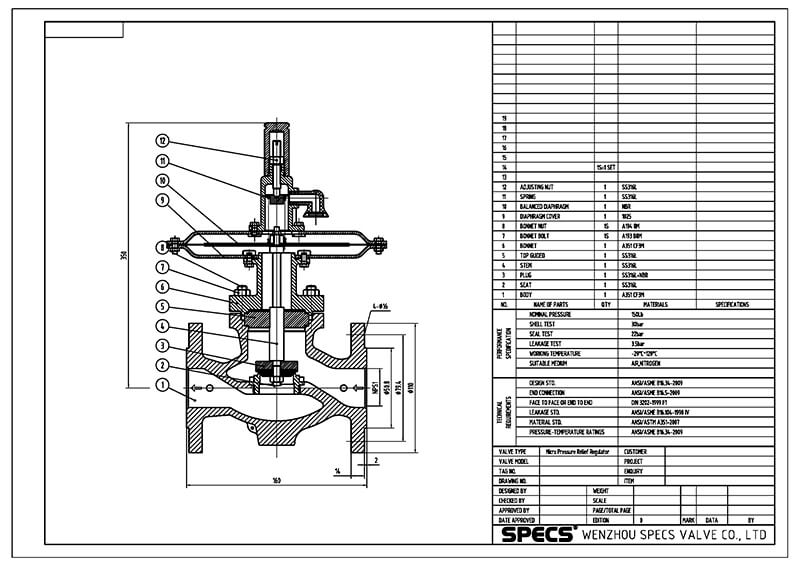

The GA Of Micro Pressure Relief Regulator
