Description
Technical Specifications
SPECS Manual Control Valves(Handwheel operation) are mainly used in the site where there is no electrical system or where precise control is not required.
Applicable Standard
Design & Manufacture Standard: IEC 60534-2006
Face to Face: ISA-75.03-1992
End Connection: ASME B16.5, EN1092-1, GOST33259, ASME B16.25
Test Standard: IEC60534-4
Products Range
Size: 1/2" ~ 24"
Pressure Rating: ASME CLASS 150~2500
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF, RTJ), Butt Weld, Socket Weld.
Temperature Range: -196℃~550℃
Seat Leakage: ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type: Standard, Fin-Extension, Long-Extension, Bellows,Steam Jacket

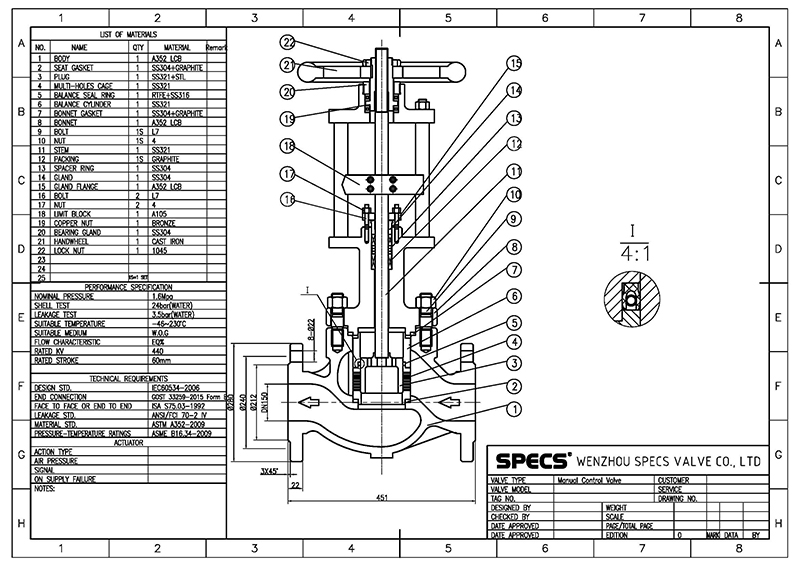

GA Of Manual Control Valve
Size below DN200 Single Seated Type

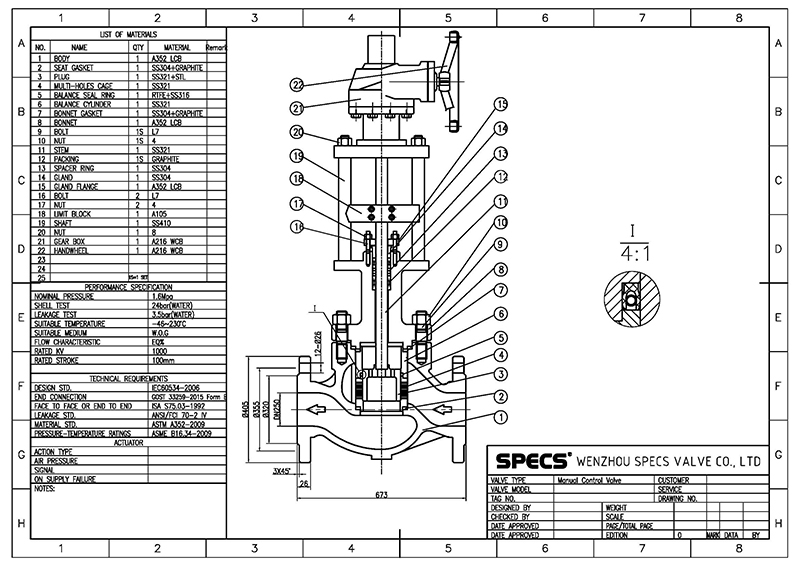

GA Of Manual Control Valve
Size over DN200(Included) Cage Guided Type

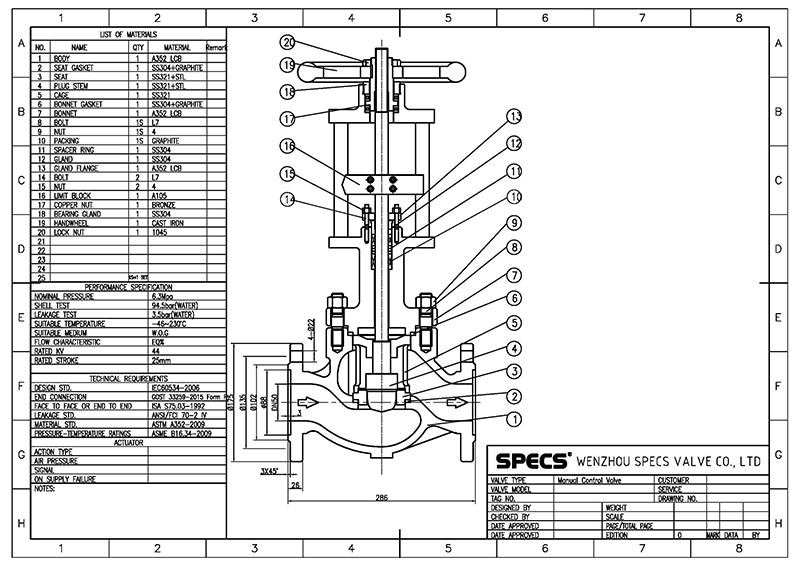

GA Of Manual Control Valve
Size below DN200(Included) Handwheel Operated
Size over DN200 Gear Box Operated
