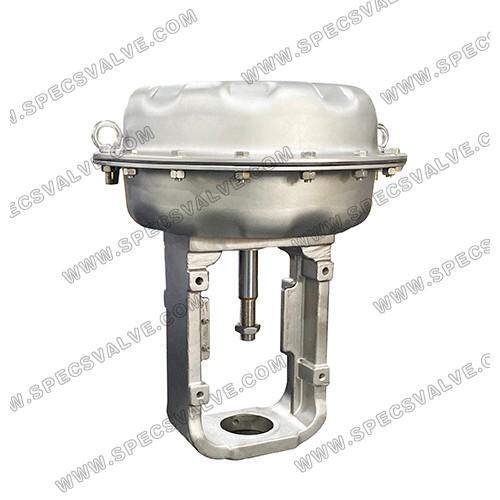

Low Temperature Membrane Actuators are mainly used in the sites where the ambient temperature is lower than -40 ° C.
We have two material configurations for low ambient temperature applications.
1.Material configuration:Yoke-LCC+Mn,Diaphragm Casing-SS304(Stainless steel),Diaphragm-Silicone rubber
2.Material configuration:Yoke-A351 CF8,Diaphragm Casing-SS304(Stainless steel),Diaphragm-Silicone rubber
The main difference between the two options is the price. Option 1 will be more competitive with Option 2, however option 2 can be used when corrosive gases are present in the environment.
Parameters
Action Type: Air To Open,Air To Close
Products Size: 22#，23#，34#，45#，56#
Spring Range: 40~200kPa, 80~240kPa,
Rated Sroke Range:16~100mm
Suitable Ambient Temperature Range: -40~70℃,-60~70℃
Handwheel Type: Top Mounted,Side Mounted
