Description
Technical Specifications

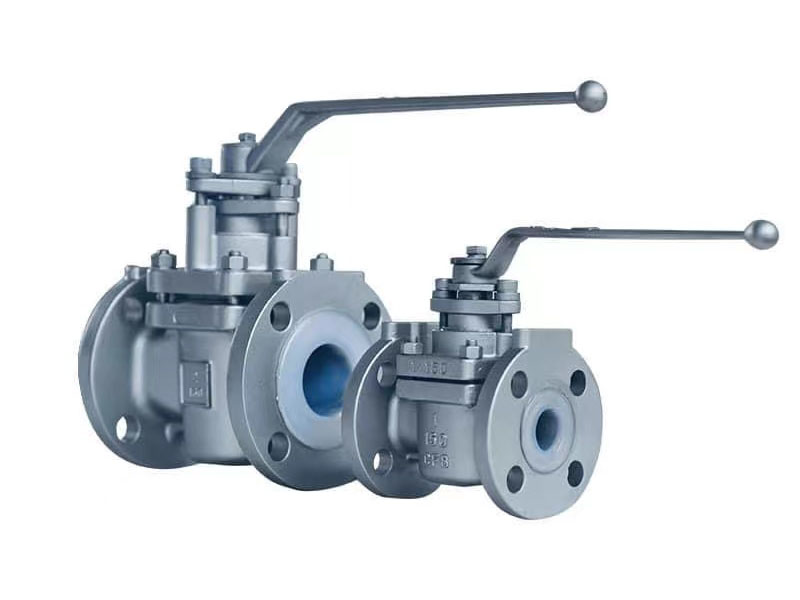

SPECS straight through Lined Plug Valves provide unristricted flow when fully open, and are also operable in a throttled positions, the moulded liner assure excellent chemical resistance and long service life.
All of our products are manufactured using latest production methodology backed by continuing quality control form raw materials to finish products to ensure the highest possible quality standards.
Products Range
Size: 1/2"~12" (DN15~DN300)
Pressure Rating: ASME CLASS 150 (PN16)
Temperature Range: −20 to +200°C
Design and Manufacture: API 599
Face to Face: ASME B16.10, DIN 3202, JIS B2002
Flange Ends: DIN EN 2532, ANS B16.5, JIS B2212
Visual Inspection: MSS Sp54
Testing: API598,DIN 12569,JIS B2003
Pressure& Temperature: ASME B16.34

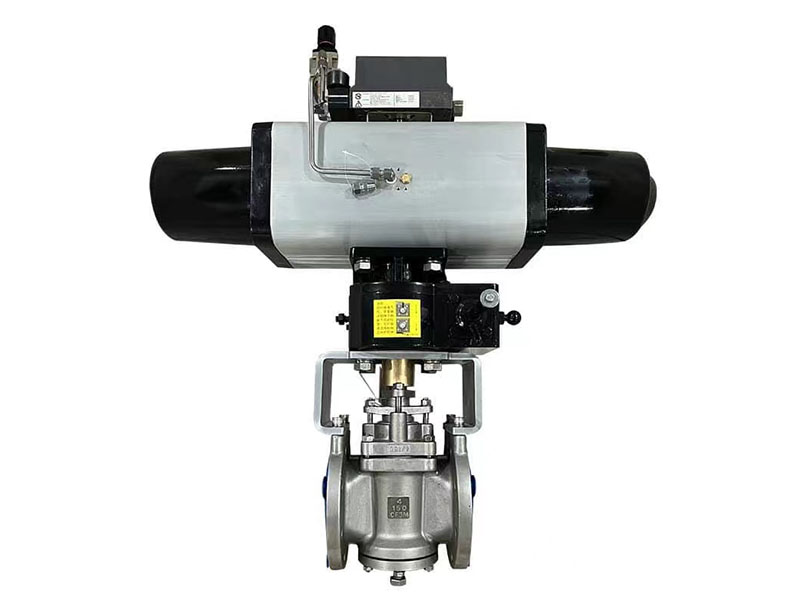

Actuator Type:Pneumatic, Electric, Lever, Gear Box
Spark Testing: 14Kv

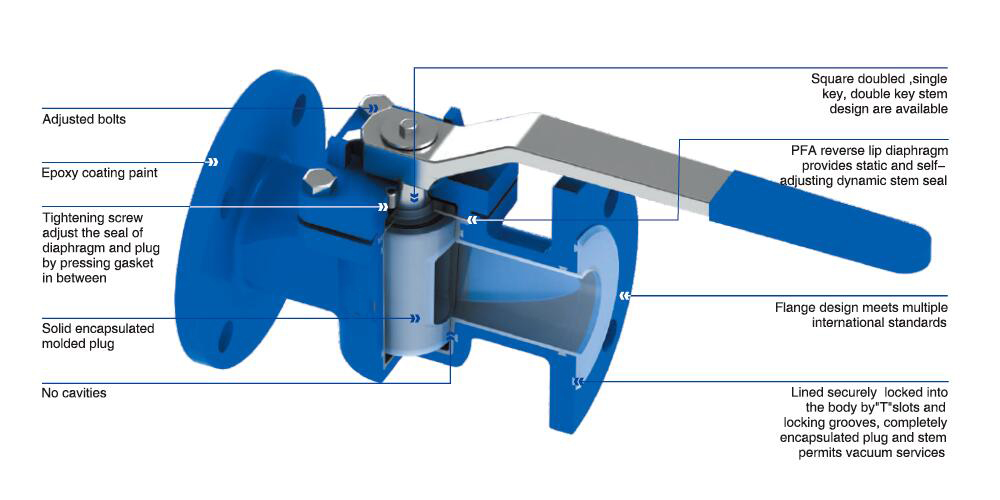

The design features of Lined Plug Valve
