The SPECS lined butterfly features ease of maintenance, repeatable on-off, long life durability.
The concentric design is commonly used in the power generation, brewing, water and food industries and suitable for both gaseous and liquid service. Typically applied in chemical/petrochemical process, food and beverage, and pulp and paper etc.
Size: 2"~36"(DN50~DN900)
Pressure Rating: ASME CLASS 150 (PN10)
Temperature Range: −20 to +200°C
Actuator Type:Pneumatic, Electric, Manual
Design and Manufacture: API 609, DIN EN1092, JIS B2032
Connection Type:Flange, Wafer, Lug

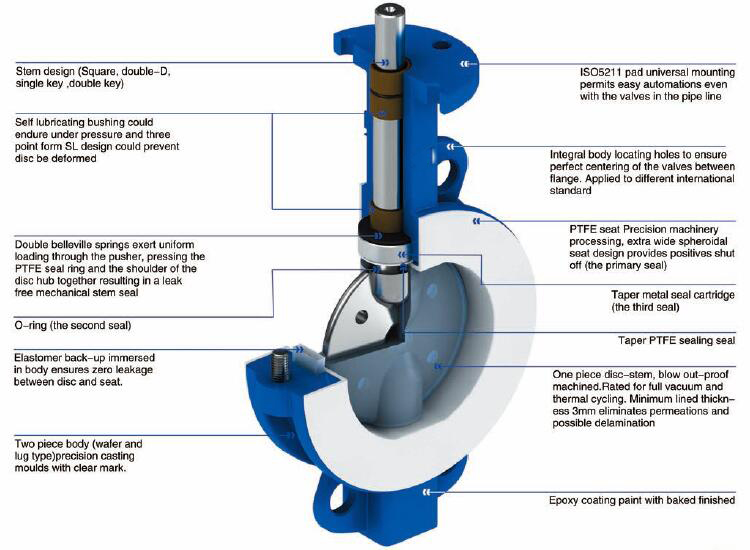

The design features of Lined Butterfly Valve
