  • Lined Ball Check Valve

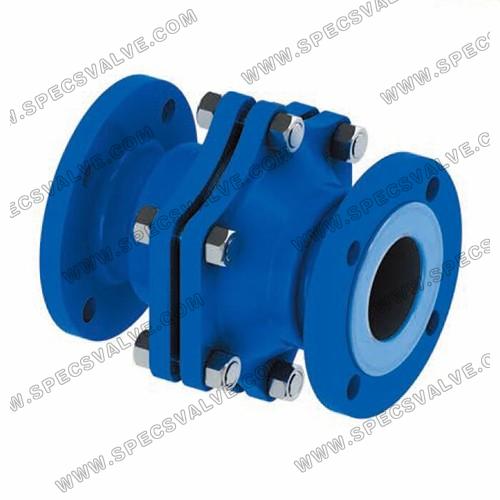

Lined Ball Check Valve

  • Views: 1067
  • Size: 1/2"~8" (DN15~DN300)
  • Pressure Rating: ASME CLASS 150 (PN16)
  • Temperature Range: −20 to +200°C
  • Lined Ball Check Valve
    Inquiry Send Email

    Description

    Technical Specifications

    The SPECS Lined Ball Check Valves are developed for use on fluids compatible with corrosion resistant characteristics of virgin PFA. These valves can be used in horizontal and vertical installations. The body of valve is made from a combination of ductile iron and steel. The body parts do not come into contact with the process flow.


    Ball type Check Valve
    PFA lined carbon steel body
    Pure PTFE Ball
    Maximum reliability: body PFA lining 4 - 5 mm
    ASME/ISO design, with solid ball,can be installed vertically and horizontally
    Can also be used for vapours and gases


    Size: 1/2"~8" (DN15~DN300)

    Pressure Rating: ASME CLASS 150 (PN16)

    Temperature Range: −20 to +200°C

    Design and Manufacture: API 594

    Face to Face: ASME B16.10, DIN 3202, JIS B2002

    Visual Inspection: MSS Sp54

    Testing: API598,DIN 12569,JIS B2003

    Connection Type:Flange

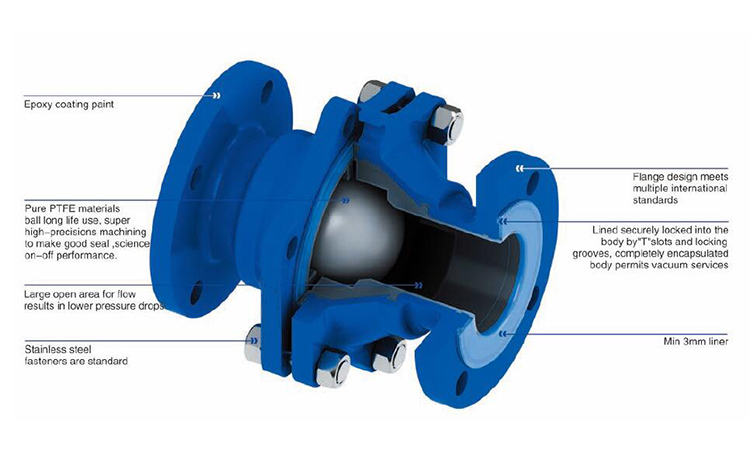

    The design features of Lined Ball Check Valve
