SPECS Flow Regulators are designed to work in the city heating networks or building heating networks. The Flow Regulator is used to control the flow rate in the pipeline. There has a flow rate adjuster in the valve which is availbe for the user to adjust the setpoint flow rate.
The flow regulators can be installed in the flow pipe or return flow pipe.The valve closes when the flow rate rises.
The electric actuator is also included in the configuration of the flow regulator.
Applicable Standard
Design & Manufacture Standard: Manufacturer's Standard
Face to Face: DIN 3202-1999 F1
End Connection: ASME B16.5, EN1092-1, GOST33259
Test Standard: Manufacturer's Standard
Products Range
Size: 1/2"~10"
Pressure Rating: ASME CLASS 150~300
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF,FM), Butt Weld, Thread
Seat Leakage: ANSI IV or ANSI VI(bubble-tight)
Bonnet Type: Standard
Temperature Setting Range: -5℃~150℃

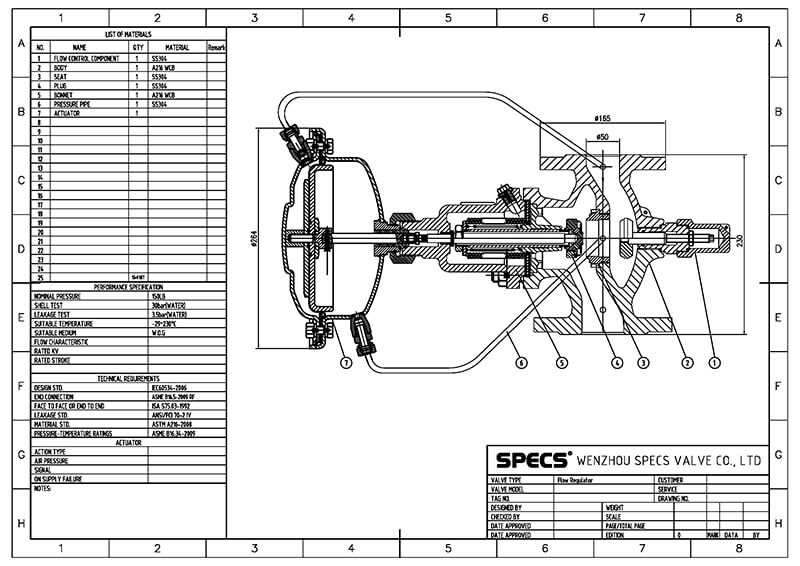

The GA Of Flow Regulator

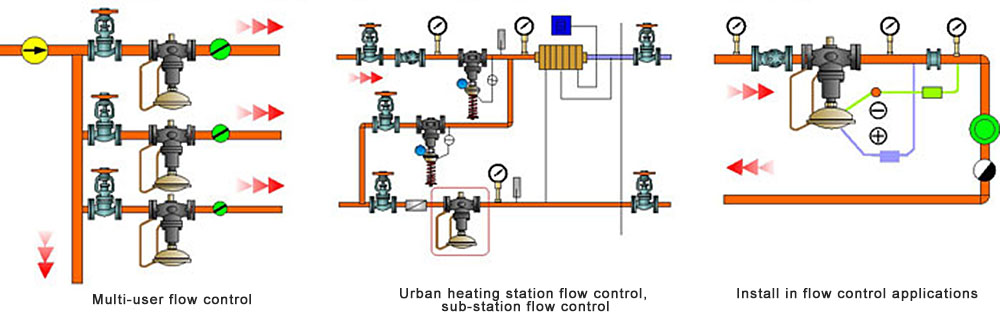

The applications of flow regulator
1.Multi user flow control of city heating networks
2.Urban heating station flow control, sub-station flow control
3.Install in flow control application
