Description
Technical Specifications
SPECS Electric PTFE Lined Control Valve provides globe type Control Valves for controlling corrosive and/or poisonous fluids. The actuator type is an intelligent electric actuator,the voltage could be 220V AC or 380V AC. We can supply our customers with China brands and also can install with famous brand like ROTORK,AUMA and etc.but just this kind of famous brand that need end user/project information.
Applicable Standard
Design & Manufacture Standard: IEC 60534-2006
Face to Face: DIN 3202-1999 F1
End Connection: ASME B16.5, EN1092-1, GOST33259
Test Standard: IEC60534-4
Products Range
Size: 1/2"~8"
Pressure Rating: ASME CLASS 150
Lined material: F46, PFA,PTFE
End: Flanged (RF)
Temperature Range:-40℃~200℃
Seat Leakage：ANSI IV or ANSI Ⅵ(bubble-tight)
Bonnet Type: Standard, Bellows

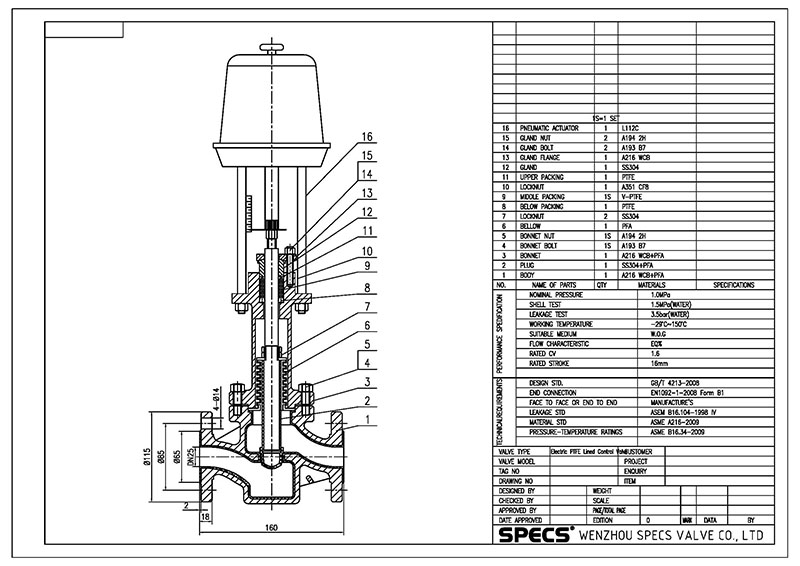

GA Of Electric PTFE Lined Control Valve
