  • Camflex Rotary Ball Valve

Camflex Rotary Ball Valve

  • Views: 1302
  • Size: 1 1/2"~16"
  • Pressure Rating: ASME CLASS 150~600
  • Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
  • Camflex Rotary Ball Valve
    Inquiry Send Email

    Description

    Technical Specifications

    SPECS Camflex Rotary Ball Valves(Camflex) are segmented Ball Valve, which also have some features of ball valves. Compared with Globe Valves, this kind of valve is of compact, large capacity and wide rangeability, etc.. It is relatively economical for liquid with low pressure drop and large flow rate, and is applicable to control liquid with high viscosity or slurry, fiber and solid particles.


    Applicable Standard

     Design & Manufacture Standard: IEC60534

     Face to Face: ISA S75.04, IEC/DIN 534-3-2 (Flange), Factory Standard (Wafer)

     End Connection: ASME B16.5, EN1092-1

     Test Standard: IEC60534-4



    Products Range

     Size: 1 1/2"~16"

     Pressure Rating: ASME CLASS 150~600

     Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel

     End: RF, RTJ

     Operation: Operation: Manual, Gear, Pneumatic, Electric

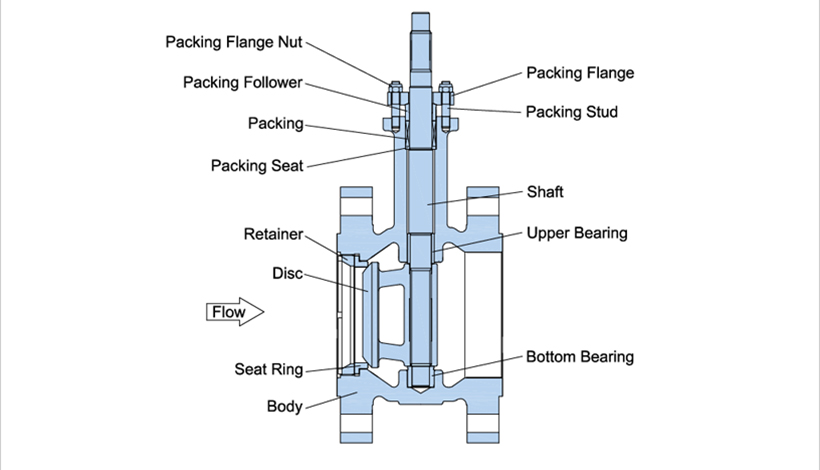

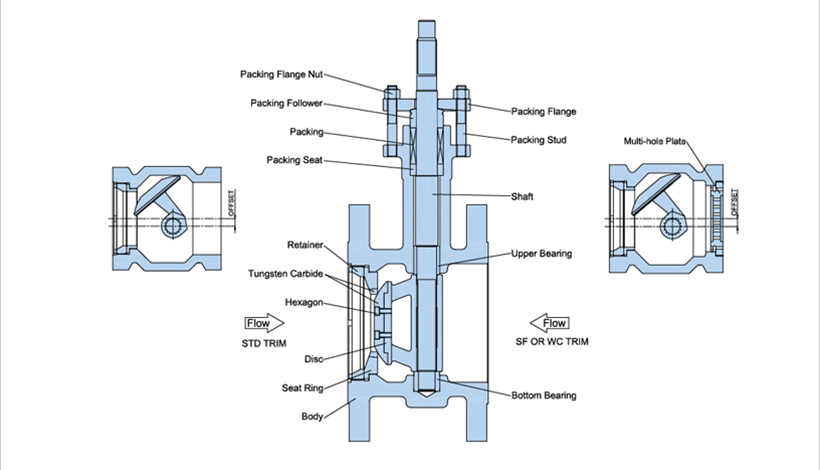

    Valve body part selection map
