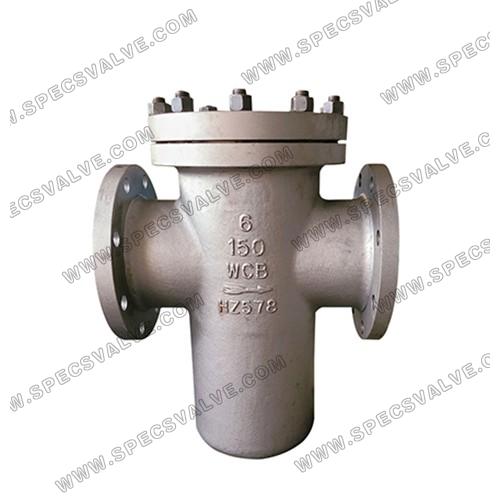

SPECS BaskeT Strainers protect equipment by mechanically removing solids from liquids and other piping systems with the use of a perforated or wire mesh straining screen in a vertically oriented chamber. BaskeT Strainers have more debris holding capacity than Y Strainers, and generally have less of a pressure drop, which is why they are ideal in liquid applications.
Basket strainers are sometimes used in double arrangements so that flow can be diverted while the system remains in service and the screen is cleaned. Basket Strainers feature top removal of the screen. The screen is in the form of a basket, with a lifting handle, so that all particulate captured and retained by the screen can be easily removed for disposal. They are intended for applications where large amounts of solids particulate are expected and where the clean-out will be frequent.
Features:
1. Top removal of the screen
2. Large straining capacity
With its large body and sizeable straining element, the basket strainer has the
ability to store large quantities of debris without affecting pressure loss.
Thus maximizing time between servicing.
3. Provide a wide selection of mesh sizes (mesh:2.5~325)
4. High Quality stainless steel screen; made out of high resistance wire,
rugged and braided type.?Thick enough to avoid deformation.
5. Drain port or drain Ball Valve with NPT end; for in line emptying of
condensate or water.
6. Bolting cover to ease maintenance operations.
7. Low pressure drop.
8. Large strainer screens.
9. Fabricated body
10. Epoxy painting
Applicable Standard:
1. Design & Manufacture standard as to: ASME B31.4, ASME B16.34
2. Face to Face dimension standard as to: MFR-STD
3. Flange dimension conforms as to: ASME B16.5
4. Testing And Inspection as to: API 598
5. Pressure-temperature conforms as to: ASME B16.34
6. Anti Corrosion as per NACE MR-0175 requirement
Products Range:
Size: 2" ~ 16"
Pressure Rating: ASME CLASS 150, 300
Working temperature: -29℃ ~ +425℃
Working pressure: ≤ 150 PSI
Suitable Medium: water & wastewater,
pulp & paper, chemical &petrochemical ,
petroleum, oil & gas, transportation,
marine industry, and food industry
Body Material: A234 WPB, A216 WCB, A105
Screen Material: A276 SS316
Mesh: As per purchaser
