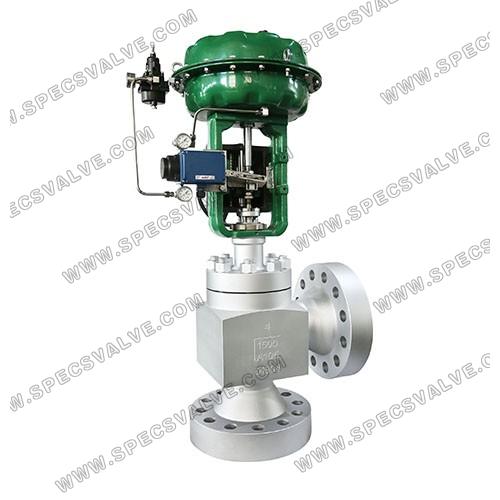

SPECS Angle Type Control Valve and globe straight control has the similar internal structure,the only difference is the valve body type.Its flow path is simple, it can effectively prevent the blocking of the medium,meanwhile the flow resistance is small. It is suitable for the medium of high viscosity or the medium contains particles.
Applicable Standard
Design & Manufacture Standard: IEC 60534-2006
Face to Face:Manufacturer's Standard
End Connection: ASME B16.5, EN1092-1, GOST33259, ASME B16.25
Test Standard: IEC60534-4
Products Range
Size: 1/2"~12"
Pressure Rating: ASME CLASS 150~2500
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF, RTJ), Butt Weld, Socket Weld.
Temperature Range: -196℃~550℃
Seat Leakage: ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type: Standard, Fin-Extension, Long-Extension
Design Features
1. This type can be used for high pressure situation and capable of situation with slurry polymer crystals and high temperature fluid.
Benefits
1. Angle Type Control Valve can prevent fluid cavitation and flashing, reduce noise and erosion of valve trim due to high flow velocity. And it has a good control of slurry and viscous fluid including particles and impurities and a wide application in high temperature, high pressure and hydrogen device. Butterfly spring dynamic sealing is used to be in full compliance with the requirements of the clean air act to guarantee the good sealing effect.

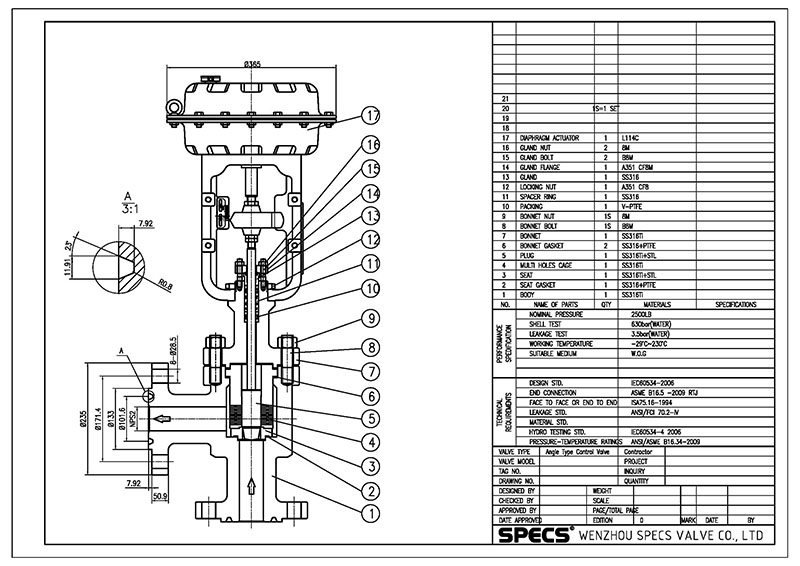

GA Of Angle Type Control Valve
Various trim designs are available for Angle valves

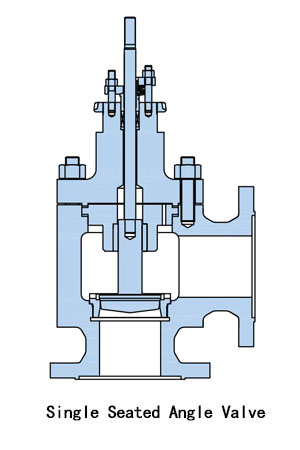

1.Single Seated Angle Valve
2.Cage Guided Angle Valve

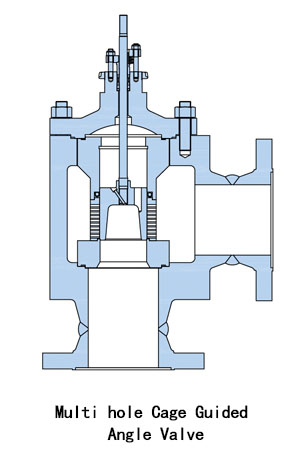

3.Multi hole Cage Guided Angle Valve

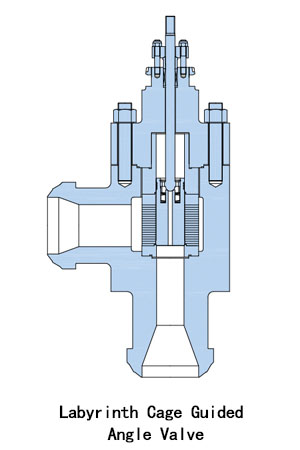

4.Labyrinth Cage Guided Angle Valve
